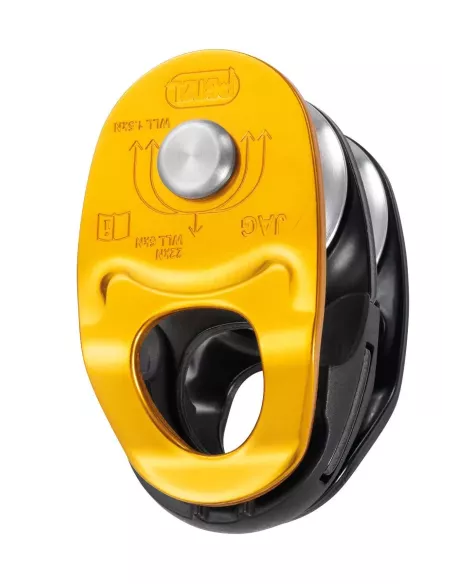

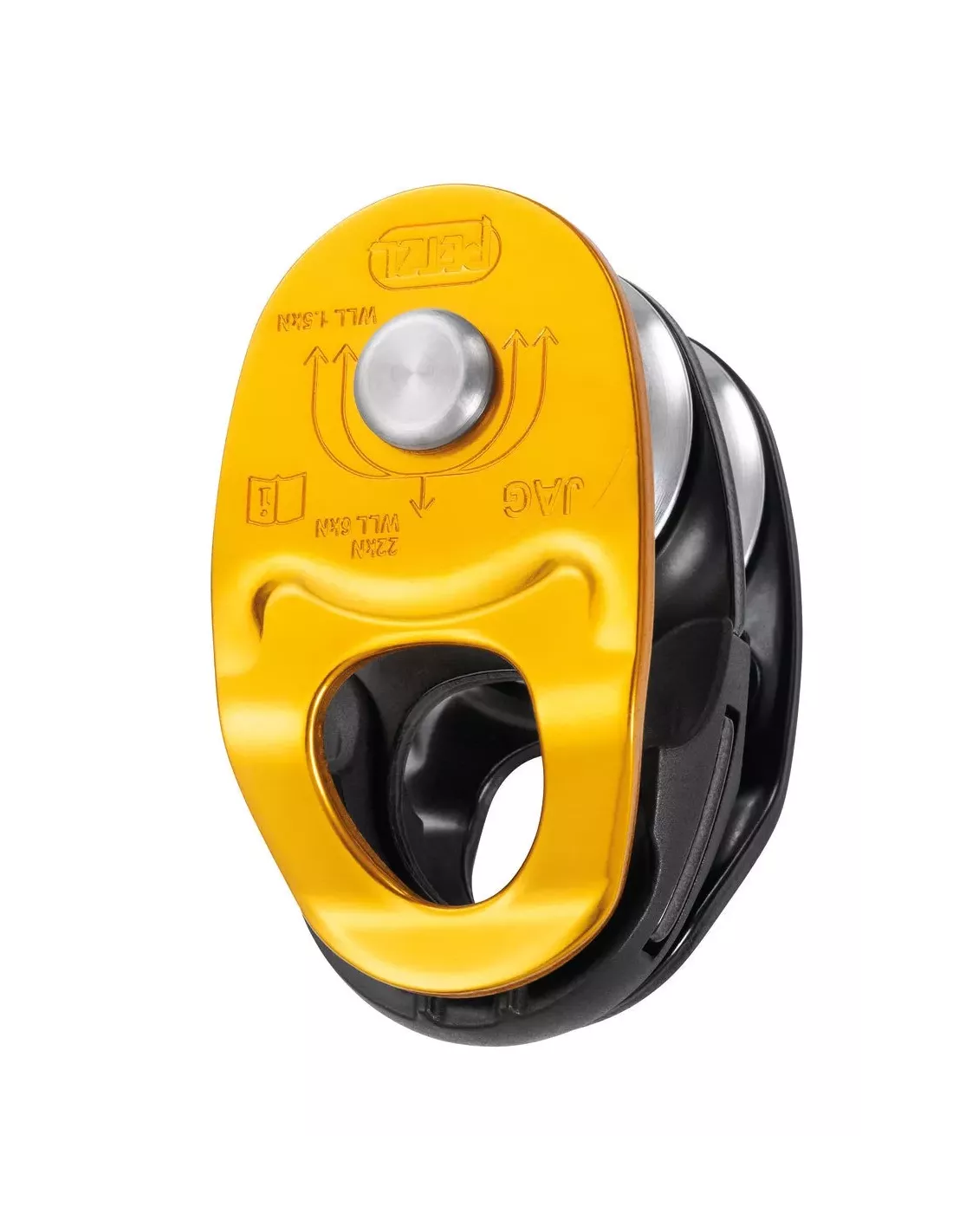

Pulley Petzl Jag

The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.

• Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
• Sheaves mounted on sealed ball bearings for excellent efficiency
• Min. rope diameter: 8 mm
• Max. rope diameter: 11 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 25 mm
• Maximum working load: 2 × 1,5 kN × 2 = 6 kN
• Breaking strength: 2 × 4 kN × 2 = 16 kN
