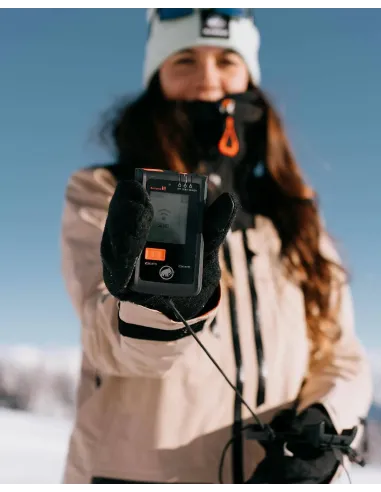

Digital/analog combo device with three antennas. The new Barryvox® S has a large receiving bandwidth and an effective search strip width of 70 meters. It offers users a large, simple interface and intuitive operation. The Smart Search function provides clear instructions thanks to a simple operating concept and quick, precise searching. The Barryvox® S includes the Rescue SEND function to protect non-searching rescuers. In the event of a secondary avalanche, the device automatically switches to SEND in order to locate buried rescuers. The Barryvox® S is also equipped with a Smart Search function, which interacts with the actions of searching rescuers.
Effective digital search strip width: 70 meters
Digital receiving range: 70 meters
Extended search range: extended receiving bandwidth (analog): up to 95 m; Extended search strip width (analog): 100 m
Circular receiving field: almost identical receiving range for X and Y antennas
Lithium-enabled: also works with lithium batteries: Less risk of leakage. More stable in low temperatures. Longer battery life (350 hours SEND)
Display: display with background lighting, very easy to read even when wearing polarized glasses
Acoustic search guidance: allows the rescuer to visually search the avalanche field
Reverse direction function to avoid 180-degree search errors
Group test with clear instructions
Visual interface: shows distance, direction and number of buried subjects
Design: ergonomic, impact-proof and break-proof. Can be operated while wearing gloves
Device tests: automatic self-test and function test
Smart search interacts with rescuer`s action during the search, making searching simpler and more reliable
Multiple buried subjects: digital signal processing in the event of several buried subjects
Buried subjects can be selected from a list, marked (MARK) and unmarked (UNMARK)
Automatic switching from send to search (Auto Revert): if a rescuer does not move for 4 minutes, we assume a secondary avalanche and the device switches to SEND mode (motion-sensor controlled)
Rescue SEND: Protective function for non-searching rescuers. In the event of a secondary avalanche it automatically switches to SEND to allow the rescuer to be located
Auto guidance: device continues to guide the rescuer to the buried subject in the event of signal failures or overlaps
Vital data: 3D sensor helps the rescuer concentrate his or her resources on the buried subjects with the highest chance of survival
Advanced search settings: individually configurable search settings: pro search, acoustic and visual guidance; automatic switching from search to send (Auto Revert)
Alternative search mode (analog mode) helps in resolving demanding search scenarios
Personalization: start screen and user texts (for example, owner information) can be personalized

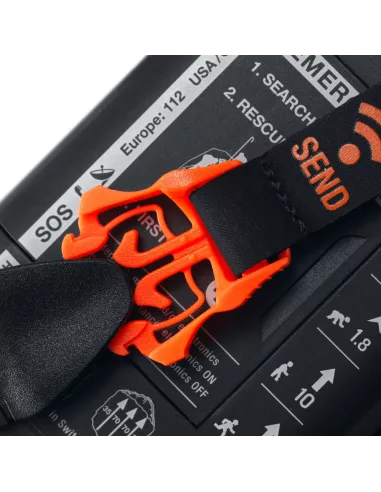

Attachment: includes highly functional Barryvox carrying system
W-Link: Additional communication channel for improved search performance
Manage the device fleet via W-Link
updatable software
Operating temperature: -25° to +45° Celsius (-13° to +113° Fahrenheit)
