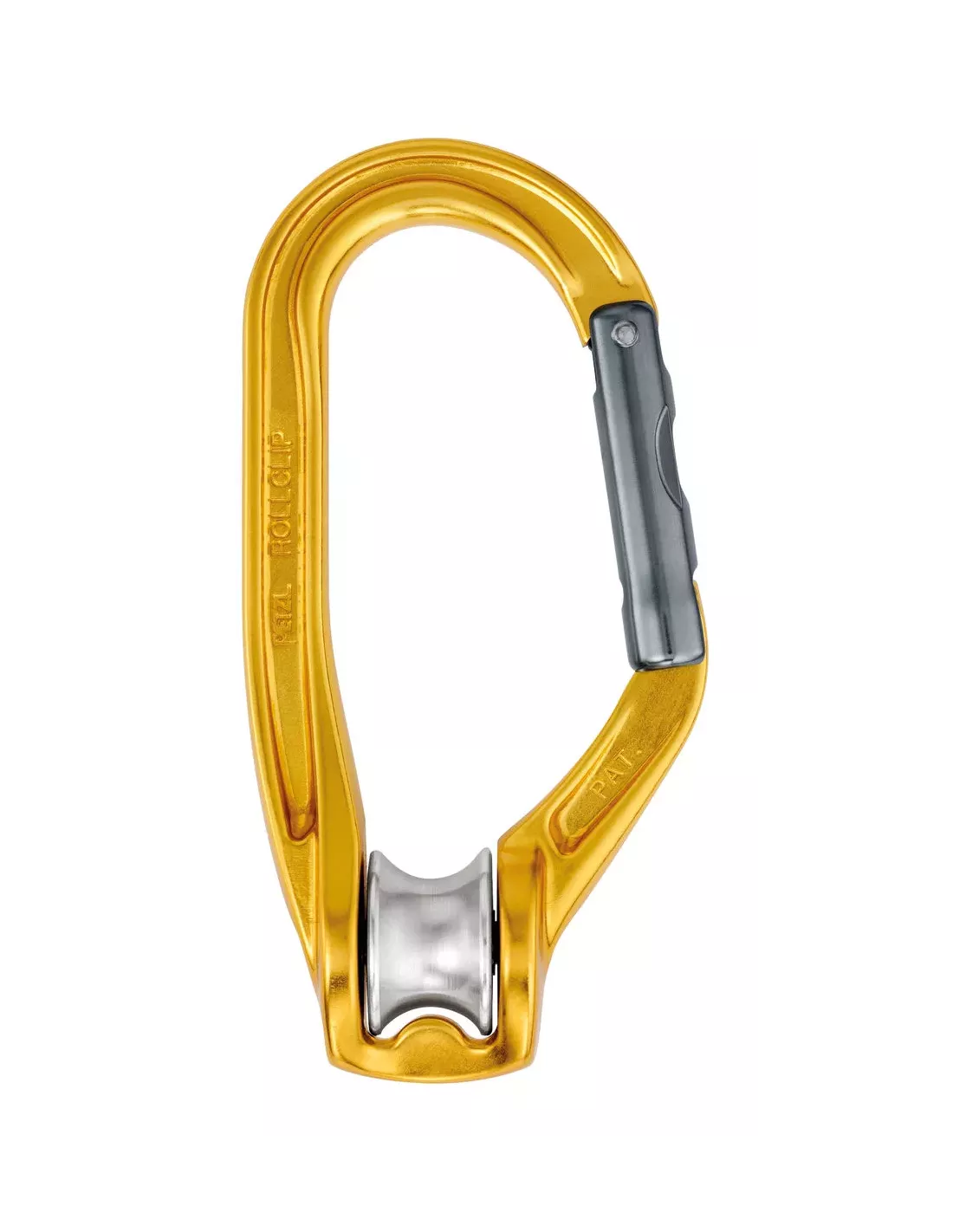

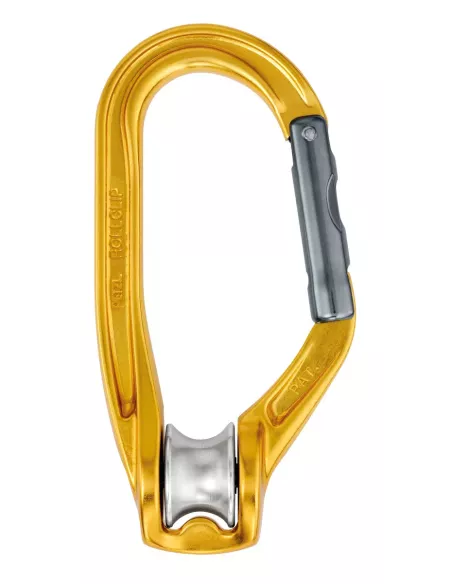

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
- Easier handling:
 - sheave mounted on sealed ball bearings for excellent efficiency

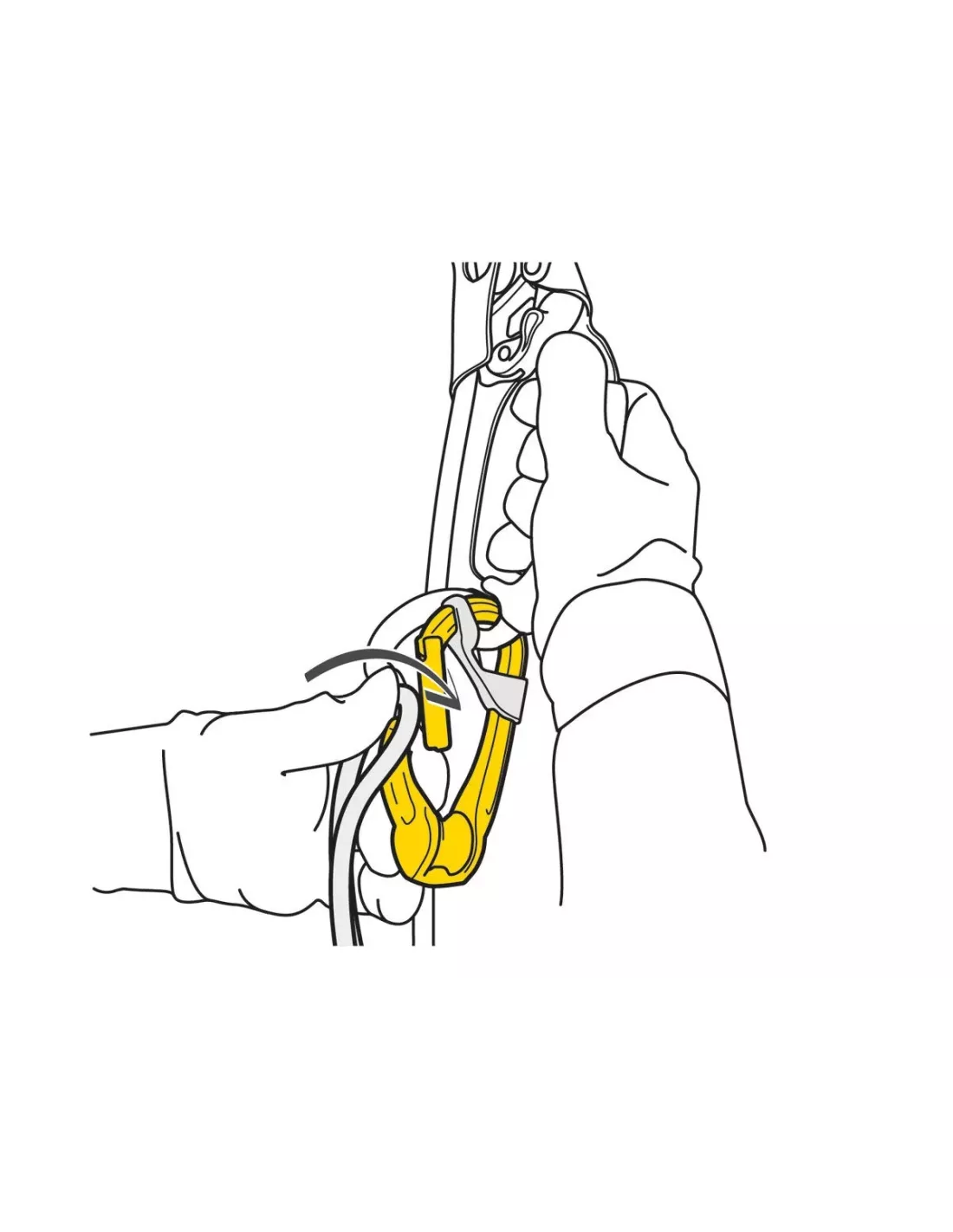

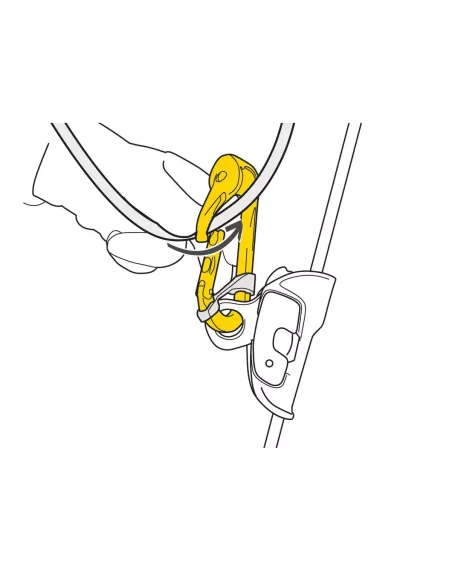

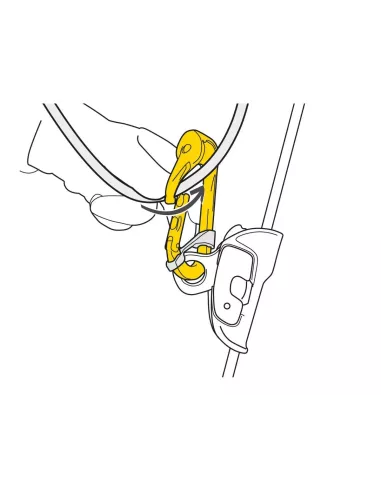

 - gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
 - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
 - Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H cross-section of carabiner:
 - ensures an improved strength-to-weight ratio
 - protects markings from abrasion
- Available in versions with or without TRIACT-LOCK locking system
Specifications
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
Certifications: CE EN 12275, EN 12278, UKCA, EAC
Gate opening: 25 mm
