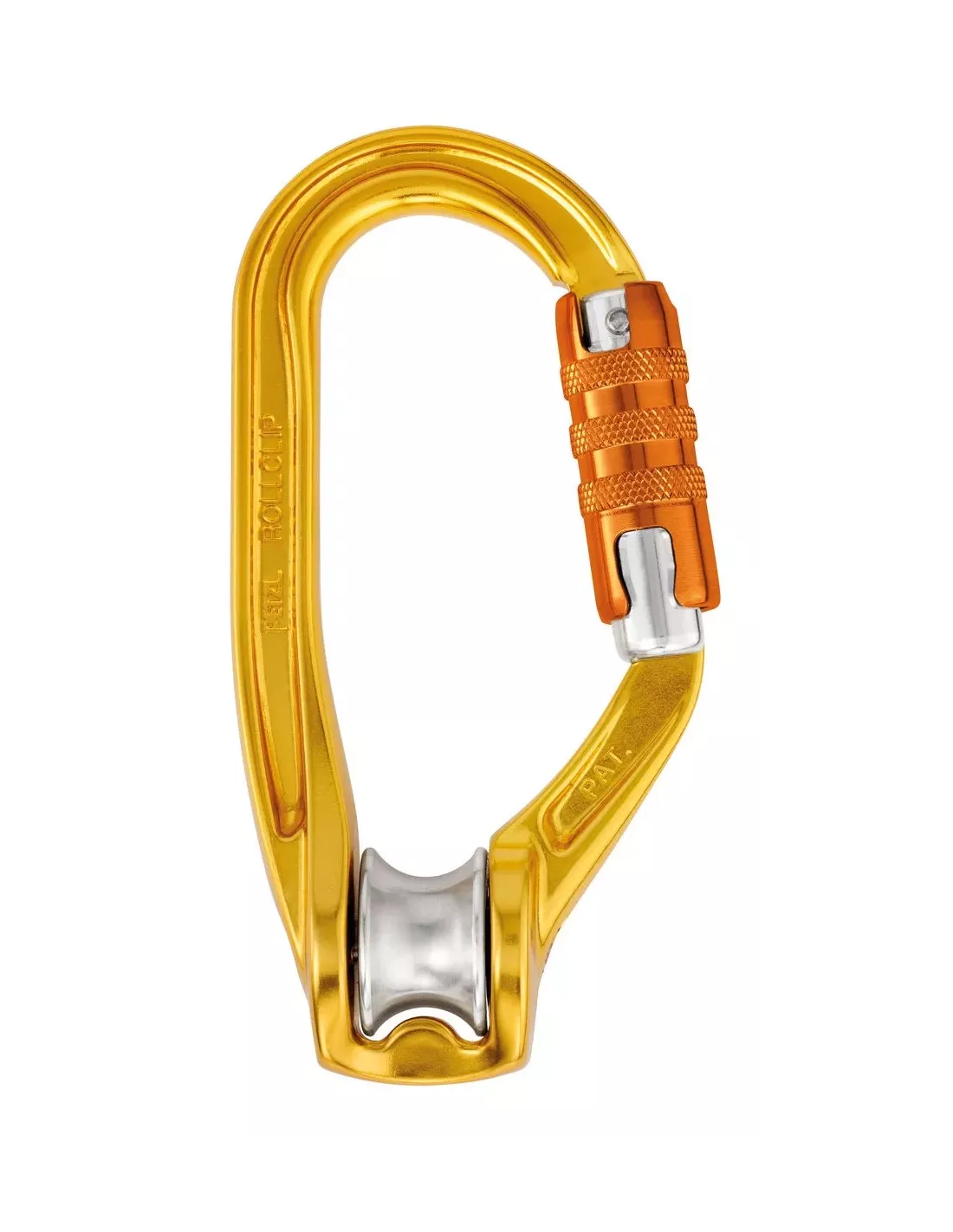

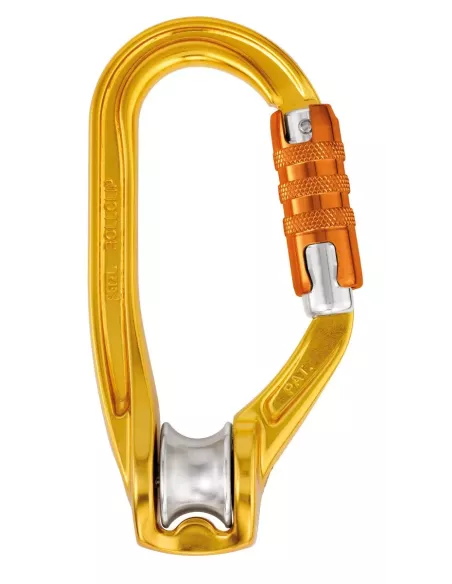

Carabiner with pulley Petzl Rollclip A Triact-Lock

Rollclip A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic Triact-Lock locking system, or without a locking system. Rollclip A may be used with a Captiv positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

• Easier handling:
  • sheave mounted on sealed ball bearings for excellent efficiency

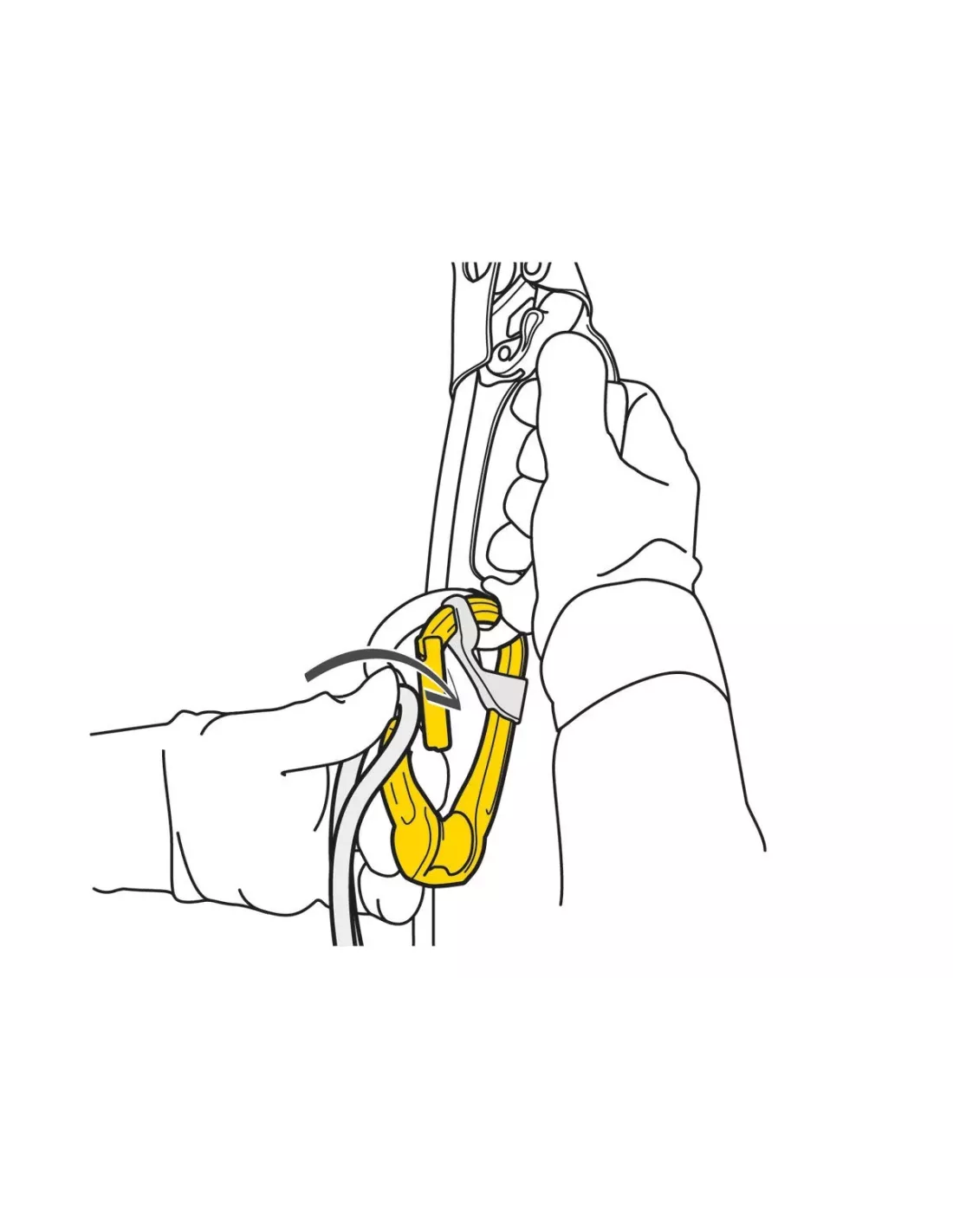

  • gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
  • may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
  • Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
• H cross-section of carabiner:
  • ensures an improved strength-to-weight ratio
  • protects markings from abrasion
• Available in versions with or without Triact-Lock locking system
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN
